Longi 450W Bifacial Solar Module

Price: CAD $259.00

SKU: LR4-72HBD-450M

Product Categories: Bifacial Modules, Roof / Ground / Pole, Shop, Solar Modules, XXL Modules : 400W+

Product Tags: 450 watt, 450W, bifacial, bifacial solar, bifacial solar canada, canada, LONGi, LONGi canada, LONGi LR4-72HBD-450M, LR4-72HBD-450M, LR4-72HBD-450M canada, mono

Product Page: https://www.modernoutpost.com/product/longi-450w-bifacial-solar-module-by-longi-lr4-72hbd-450m/

Product Summary

This is the LONGi 450W Bifacial Solar Module. One of the highest power modules on the market in this 72-cell size format. This module packs a lot of advantages that maximize your energy yield and system value, including half-cut bifacial monocrystalline cells, and a long 30-year linear output warranty.
Model: LR4-72HBD-450M

Product Description

This is the LONGi 450W Bifacial Solar Module. One of the highest power modules on the market in this 72-cell size format. This module packs a lot of advantages that maximize your energy yield and system value, including half-cut bifacial monocrystalline cells, and a long 30-year linear output warranty.
Model: LR4-72HBD-450M

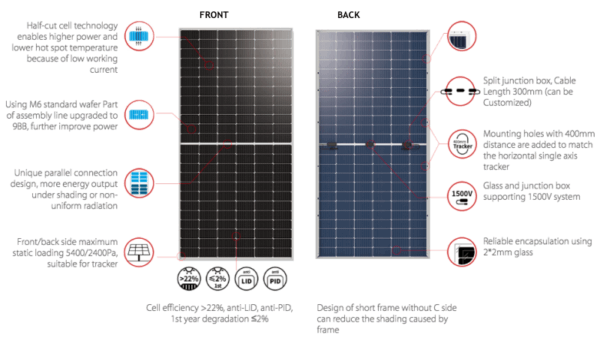

LONGi 450W LR4-72HBD-450M Features

High Efficiency
Cell efficiency >22%, anti-LID, anti-PID, 1st year degradation ≤2%

Bifacial Cells
Yields energy from both direct front-side, plus ambient & reflected back-side daylight for as much as a 30% gain in output

Half-cut Cell Technology
Smaller cell width enables higher power and lower hot spot temperature because of low working current

More Busbars
Using 9 busbar cell fabrication to further improve power.

Split-Module Architecture
Unique parallel module connection design, for more energy output under shading or non-uniform sunlight

Weather Tough
Front/back side maximum static loading 5400/2400Pa, suitable for trackers
1" hailstones test at 23m/s (83km/h)

Glass-Glass Construction
Reliable encapsulation using 2*2mm glass

Split Junction Box
Positioned mid-module for easy wiring of strings in either landscape or portrait orientation

Suitable For Large Arrays
Glass and junction box support 1500V systems

LONGi 450W LR4-72HBD-450M Specifications

Max Power (Pmax) : 450W
Open Circuit Voltage (Voc) : 49.6V
Short Circuit Current (Isc) : 11.58A
Voltage at Max Power (Vmpp) : 41.4V
Current at Max Power (Imp) : 10.87A
Module Efficiency (%) : 20.7

Mechanical
Cell Architecture : 144 (6x24)
Junction Box : IP68, 3 diodes
Glass : Dual, 2.0mm, coated, tempered
Frame : Anodized aluminum alloy

Dimensions
Length : 2094mm
Width : 1038mm
Depth : 35mm
Weight : 27.5kg

Download the Spec Sheet Here ¹

Product Attributes

• Dimensions: 210 × 104 × 4 cm
• Weight: 25 kg
