200W EZ-Out Rollable Solar Kit with Stand by P3

Price: CAD $2,189.00

SKU: P3200WROLL-RACK

Product Categories: , , ,

Product Tags: , , , , , , , , , , , , ,

Product Page: https://www.modernoutpost.com/product/p3-ez-out-200w-rollable-solar-kit/



Product Variants

  • 200W EZ-Out Rollable Solar Kit with Stand by P3 - Coyote Brown ()
  • 200W EZ-Out Rollable Solar Kit with Stand by P3 - Saffron Yellow ()

Product Summary

The 200W rollable solar panel by P3 Solar is a reliable and portable solar power for mission critical electronic gear. Advanced CIGS thin film solar cell technology means more power in partial sun and shoulder seasons than crystalline panels. This kit includes the rollable 200W panel, plus folding quick stand.

Product Description

The EZ-Out system is the easy way to get reliable and portable solar power for mission critical electronic gear. The EZ-Out system is comprised of P3's outstanding 200W rollable solar panel, plus a corrosion resistant 6063 aluminum frame and stainless steel hardware & carry bag. Best of all, the advanced CIGS thin film solar cell technology means more power in partial sun and shoulder seasons than crystalline panels. Great at high altitude camps, as well as Canadian latitudes.

The P3 Solar EZ-Out 200W Solar System was designed for rapid deployment allowing setup in minutes. A fixed 30-degree angle provides a stable base & is ideal for most Canadian & international locations in summer. Modification of the angle in the field for your specific project is easily done using terrain, or extension legs (sourced independently).

The 200W Rollable Solar Charger, designed for use with the EZ-Out collapsible mounting frame or standalone, provides a significant amount of solar energy for battery charging. At 40w/pounds, the 200W rollable is incredibly effective power solution. It rolls to a 5” diameter making it easy to transport and store. The 200W has built in bypass diodes so it's very shade tolerant!

Available in Saffron (Yellow) or Coyote (Brown)

Perfect for charging:

• Rechargeable Batteries
• GPS Devices
• Laptop Computers
• 2-way Radios
• Satellite & Cell Phones
• PDAs MP3 Players
• Satellite Terminals
• Thermal Imaging Camera's
• Laser Rangefinders

P3 200W Rollable Solar Panel Specifications...
Deployed, mm: 889 x 1956 x 1.0
Deployed, inches: 38.625 x 77.75 x 0.04
Rolled, mm: 127 Dia x 981
Rolled, inches: 5 Dia x 38.625
Weight: kg (Ib) 3.18 (7.0 )
Max Output: 200 watt (38v at 5200mA)

P3 200W ROLLABLE SOLAR CHARGER SPEC SHEET
Kit Spec Sheet (Including Stand) 1

Connecting the P3 200W Rollable

Get the accessories you need to connect your P3 to your battery & power systems...

SAE to Ring Terminals - 15 inch 2 : 18 AWG zip cord cable, #10 rings
SAE to Ring Terminals - 18 inch 3 : 16 AWG zip cord cable, 5/16” rings, shrouded SAE & cap
SAE to FCLA 4 : SAE to Female Cigarette Lighter Adapter (socket)
SAE to MCLA 5 : SAE to Male Cigarette Lighter Adapter
SAE to 2.5mm Barrel 6 : SAE to 2.5mm id x 5.5mm od Barrel Adapter
SAE to 2.1mm Barrel 7 : SAE to 2.1mm id x 5.5mm od Barrel Adapter
SAE Y-cable 8 : Output Splitter/Combiner Cable
8' Extension 9 : SAE to SAE 8' Extension cable, 18AWG
20' Extension 10 : SAE to SAE 20' Extension cable, 14AWG
7A Charge Controller 20 11 : Charge control for 12V lead acid batteries

Need Battery Storage?

There are 3 battery systems we can recommend for use with the P3 200W solar panel...
(We also recommend one of the P3 extension cables (listed above), so you can deploy the solar panel at an effective location vs the battery kit)

Connecting to the P3 Dynamo AC 600...
The first is the P3 Dynamo AC 600 Lithium kit 12. Affordable, rugged, and built with premium components and the P3 solar panels in mind, so this is plug & play with P3 cable accessories.

Or, consider the popular Goal Zero Yeti 1250 13 or Yeti 1400 Lithium 14.
Connecting to the Yeti 1250...
Via the Yeti 8mm input port, you will need the following connectors: P3 SAE to 2.5mm Barrel 15, and the Voltaic K-Tip (2.5mm>7.9mm) 16. This port accepts 160W max, so if you are in ideal conditions, the solar panel's output will get clipped. For most instances, this will work fine.
Via the Yeti's Anderson Power Port input port, you will need the following connectors: P3 SAE to Ring Terminals 17, MC4 connector 18 set, Goal Zero MC4 to Anderson 19 cable.
Cut the O-rings off the P3 cable and crimp-on the MC4 connectors (IMPORTANT-POLARITY MUST BE PRESERVED!).

Connecting to the Yeti 1400 Lithium...
The Yeti 1400 Lithium has a lower input voltage range, and although it can handle larger input wattage solar panels, the voltage needs to be managed.
Use the 7A Charge Controller 20 11 for a simple solution.
Use the following MPPT charge controller for best results: Morningstar Sunsaver 15L 21

Let us know if you have any questions about configuring your P3 solution.

Product Attributes

  • Dimensions: 1 × 1 × 1 cm
  • Weight: 4.9 kg
  • Colour: Saffron Yellow, Coyote Brown

Product Gallery

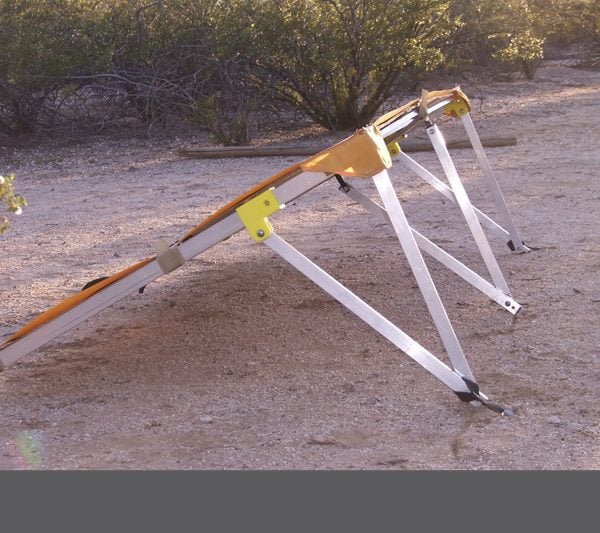

 p3 200w EZ-OUT rack stand
